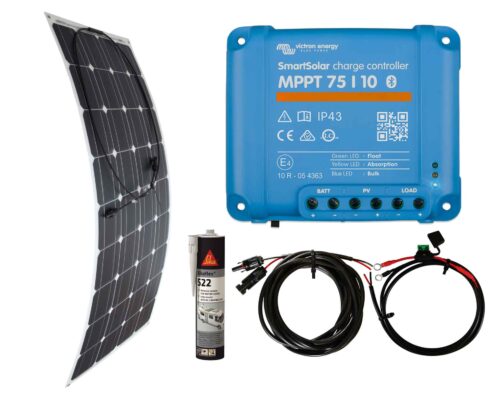

100w Flexible White Solar Panel Kit With 10A Victron Energy Smart Charge Controller

• 1 x 100w White Flexible Mono Solar Panel by Lowenergie™
• 10A Smart MPPT Charge Controller by Victron Energy™
• Solar PV to controller cable
• Battery to solar controller cable
• 1 Tube of Sikaflex

Technical Specifications

100 Flexible Watt Solar Panel (with 1m Cable & Solar Connector Plugs)

• Monocrystalline solar cells
• Max Power: 100w
• Max Power Voltage: 18.0v
• Max Current: 5.56A
• Open Circuit Voltage: 22.54v
• Short Circuit Current: 5.94A
• Weight: 6.9kg
• Size: 1200 x 540 x 30mm
• Maximum System Voltage: DC1000v
• Power Tolerance: ±3%

Technical – SmartSolar Charge Controller MPPT 75/10

• Battery voltage (auto select) 12/24V
• Rated charge current 10A
• Nominal PV power, 12V 1a,b) 145W
• Nominal PV power, 24V 1a,b) 290W
• Max. PV short circuit current 2) 13A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption 12V: 25 mA 24V: 15 mA
• Charge voltage ‘absorption’ 14,4V / 28,8V (adjustable)
• Charge voltage ‘float’ 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 10A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct

Enclosure

• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0,5 kg
• Dimensions (h x w x d) 100 x 113 x 40 mm

Standards

• Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.

1b) The PV voltage must exceed Vbat + 5V for the controller to start.

Thereafter the minimum PV voltage is Vbat + 1V

2) A PV array with a higher short circuit current may damage the controller.

Victron Energy are a Dutch company who lead in the field of off- grid solar products.

Solar Panels to Controller Cable

5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

Product Warranties

Solar Panel = 1 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.

Power Output Warranty is at least 90% maximum power for first 10 years of use and;

Power Output Warranty of at least 80% maximum power output for up to 25 years use
