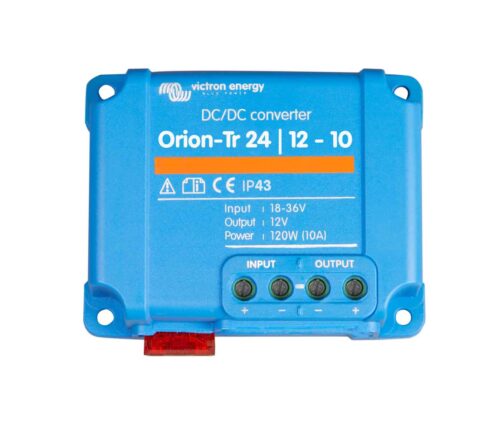

Victron Energy Tr 24/12-10A 120W 24V to 12V DC-DC Converter Non Isolated ORI241205200R

Description

High efficiency

Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Orion-Tr 24/12-10

• Input voltage range 18-35V
• Output voltage 12.7V
• Efficiency 97%
• Continuous output current 10A
• Max. Output current 12A
• Galvanic isolation no
• Offload current < 45mA
• Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
• DC connection Screw terminals
• Maximum cable cross-section 6 mm² AWG10
• Weight 200g
• Dimensions h x w x d in mm 73 x 94 x 37
• Manual
• Victron Energy part number ORI241205200R
