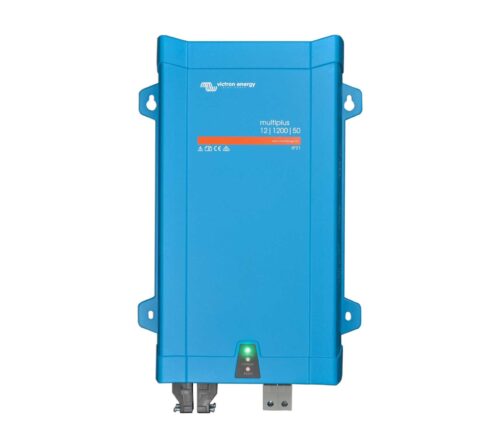

Multiplus – Part Number: PMP122160000
Multifunctional, with intelligent power management
The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.
Parallel operation and three phase capability
Up to six Multis can operate in parallel to achieve higher power output.
In addition to parallel connection, three units can be configured for three-phase output.
PowerControl – Dealing with limited generator, shore side or grid power
With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist – Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Four stage adaptive charger and dual bank battery charging for Lithium, Sealed, AGM, Gel and Flooded Batteries
The main output provides a powerful charge to the battery system by means of advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery, and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and on our website, under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.
High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode
When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70 %. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Remote on/off/charger on
Three pole connector.
On-site system configuring, monitoring and control
After installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches. 600/2000 VA models: battery charge voltage/ search mode. For more settings use VE-Config or the VE.Bus Smart dongle.
Remote configuring and monitoring
Install a Cerbo GX or other GX product to connect to the internet.
Operational data can be stored and displayed on Victron Energy VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.
Technical Specification
- PowerControl / Power Assist Yes
- Three Phase and parallel operation Yes
- Transfer switch 16A
Inverter
- Input voltage range 38-66V
- Output Output voltage: 230 V AC ± 2 % Frequency: 50 Hz± o,1 % 171
- Cont. output power at 25 ‘CI3I 1600VA
- Cont. output power at 25 ‘C 1300W
- Cont. output power at 40 ‘C 1100W
- Cont. output power at 65 ‘C 800W
- Peak power 2800W
- Maximum efficiency 95%
- Zero-load power 10W
- Zero-load power in search mode 3W
Charger
- AC Input: Input voltage range: 187-265 VAC, Input frequency: 45- 65 Hz
- Charge voltage ‘absorption’ 57.6V
- Charge voltage ‘float’ 55.2V
- Storage Mode 52.8V
- Charge current house battery (4) 20A
- Charge current starter battery 1A
- Battery temperature sensor Yes
General
- Programmable relay (5) Yes
- Protection (2) a-g
- VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration (RJ45-spliter ASS030065510 is needed)
- Remote on-off On/off
- DIP Switches Yes
- Internal DC Fuse 60A
- Common Characteristics Operating temp. range: -40 to +65 ‘C (fan assisted cooling) Humidity (non-condensing): max 95 %
Enclosure
- Common Characteristics Material & Colour: Steel/ABS (blue RAL 5012), Protection category: IP 21
- Battery-connection 16mm2
- 230VAC Connection G-ST18i connection
- Weight 10.2kg
- Dimensions 470 x 265 x 120mm
Standards
- Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
- Emission Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Automotive Directive ECE Rl 0-5
Notes
- Can be adjusted to 60Hz and to 240V
- Protection: a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f. 230 VAC on inverter output g. Input voltage ripple too high
- Non-linear load, crest factor 3:1
- Up to 25 ‘C ambient
- Programmable relay which can be set for: general alarm, DC under voltage or generator start/stop signal function AC rating: 230V/4A DC rating: 4 A up to 35 voe, 1 A up to 60 voe
- Remote/ battery charge voltage/ inverter frequency/ search mode
- Battery charge voltage/ search mode
https://www.victronenergy.com/upload/documents/Datasheet-MultiPlus-500VA-1600VA-EN.pdf
